FELIX Pro XL v3.0

From €19,299.50 €15,950.00

Up To €22,461.96 €18,563.60

Leadtime approx. 6-8 weeks

The FELIX Pro L & XL additive manufacturing systems have been designed to perform at scale, and both 3D printers have been constructed to ensure reliable output for much larger parts. These are manufacturing tools for every stage of the product development and manufacturing workflow with an optimal price | performance ratio.

Key things to know about the PRO L and XL:

✓ Large volume builds up to 144 liters
✓ Intelligent no-power detection for avoiding print failure
✓ Industrial quality 3D prints for prototyping and design
✓ Faster operations and ease of use with 7” touch screen

This 3D printer is handmade to order in our own factory in Europe. Our printers are enabled for modular upgrades in the future, ensuring an extensive lifespan.

Large build sizes with unmatched ease of use
Benefit from the advantages of additive manufacturing, without the hassle. The Pro L & XL offer unmatched ease of use for professional large volume 3D printing.

Pro L building size: 300 x 400 x 400 mm or 11.8” x 15.75” x 15.75”
Pro XL building size: 600 x 400 x 600 mm or 23.62″ x 15.75″ x 23.62″

Preventing print failure at all times
During printing the flow of the print material is fully controlled to avoid missing print layers or printing in thin air.

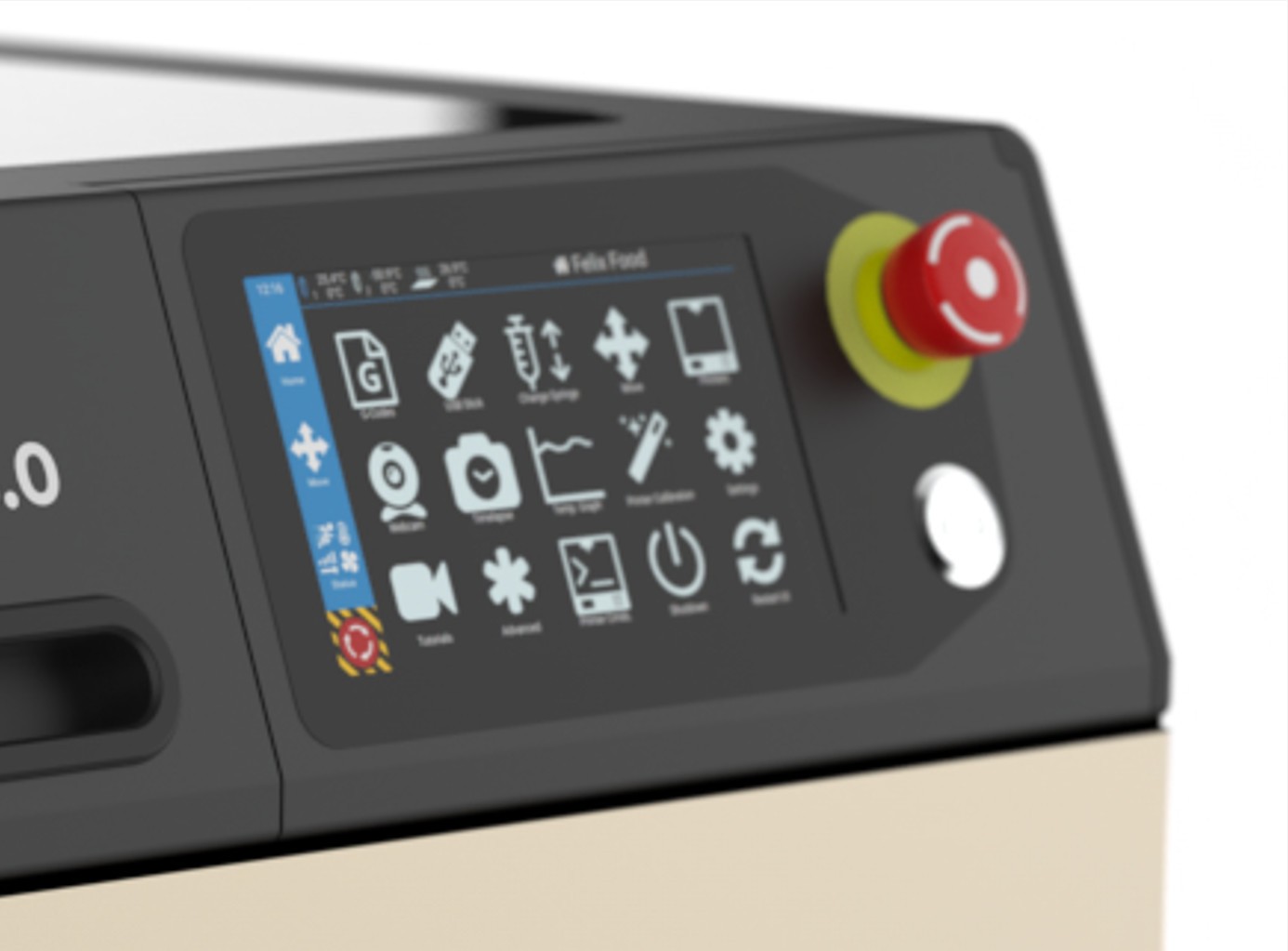

Visual (remote) control
With the touchscreen, the printer can be accessed via USB and/or WiFi and the unit can be connected in a network or standalone. In a network the unit can control up to 7 stations. This enables you to take full control of your 3D printer, and increase efficiency in your workflow.

See below for detailed tech specs.

Customize: FELIX Pro XL v3.0
FELIX Pro XL 3.0 - 3D printer   + €19,299.50 €15,950.00

* Required Fields

FELIX Pro XL v3.0 is available to buy in increments of 1
Your Customization

    €19,299.50 €15,950.00

    - +
    Availability:In stock
    SKU 101 026.3

    Build size (LxWxH)

    Pro L: 300 x 400 x 400 mm or 11.8” x 15.75” x 15.75”
    Pro XL: 600 x 400 x 600 mm or 23.62" x 15.75" x 23.62"


    Build volume:

    Pro L: 48 Liter / 12.7 Gallon
    Pro XL: 144 Liter / 42 Gallon


    Filament (open source):

    1.75 mm (tolerance +/- 0.05 mm)


    Filament Materials:

    PLA, ABS, PETG, PVA, FLEX, Carbon ber, Nylon, Glass, Wood ll


    Nozzle diameters:

    Brass (standard): 0.35 / 0.50 mm
    Hardened Steel (optional): 0.25 / 0.35 / 0.50 / 0.70 mm


    Print Speed (mm / sec):

    Up to 100 mm/sec (60 mm/sec is recommended)


    Positioning accuracy XYZ:

    0.01 mm


    Layer thickness in mm:

    0.05 mm to 0.35 mm or 50 micron to 350 micron


    Nozzle temperature:

    Up to 275 degrees Celsius


    Heated bed construction:

    Solid casted & milled high precision aluminum

    Up to 110 degrees at environmental temperature > 20 degrees C

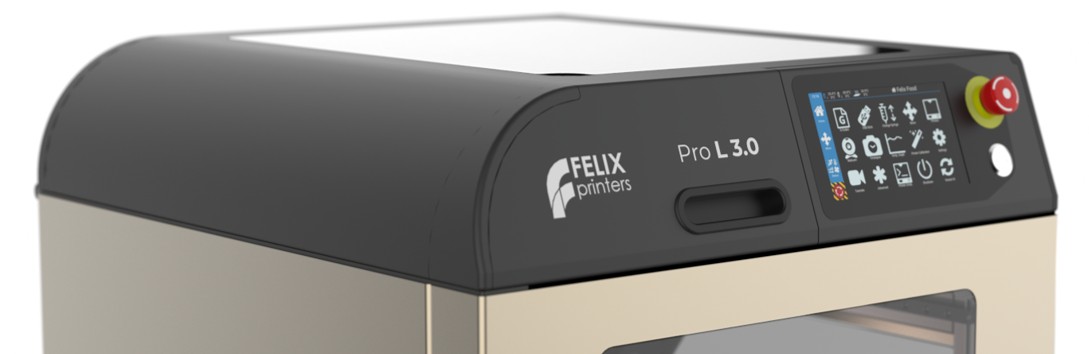

    Control panel:

    7” Touch screen, with intuitive menu structure, available in English, German, Dutch, Spanish and others.


    Operating system:

    Windows, Mac OS


    Connectivity options:



    Software: (Incuded)

    Simplify3D - All pre-settings have to be downloaded from www.felixprinters.com/downloads



    110 up to 240 volts AC, 50/60 Hz Max 1600 Watt.


    Physical dimensions (LxWxH):

    Pro L: Overall printer dimensions: 600 x 666 x 776 mm or 24” x 26” x 31”
    Pro XL: Overall printer dimensions: 906 x 666 x 966 mm or 37” x 26” x 38”


    Total weight [kg]:

    Pro L: approx. 63 kg
    Pro XL: approx. 80 kg


    Operating temperature:

    15 to 30 degrees Celsius


    Noise level:

    Less than 40 dBA


    Inside the box:

    Comes with: Tweezers, set Te on tubes, USB cable, USB stick, LAN cable, Filament spool holders, Spool of PLA lament, Quick Start Manual.
